*Click on the model number for detail page.
| Model number | Door size applicable(mm) | Door weight (kg) |
Standard closing force (N•m) |

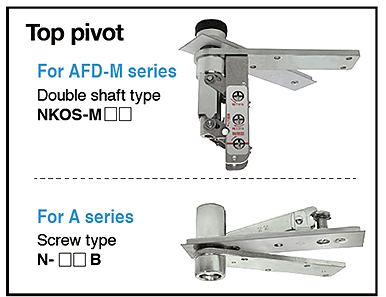

Spring set system | Max, opening angle | Top pivot | ||||
| A series |
AFD-M series | W | H | D | A series | AFD-M series | ||||
| A-8KH | AFD-8KH-M | 800 (max.) |
2000 (max.) | 36 (min.) |
50 (max.) | 6.9 | Roll-in system |
180 ̊ right or left one-side opening |
N-21B | NKOS-M18 |
| A-12H | AFD-12H-M | 1200 | 2100 | 40 | 100 | 15.7 | ||||
| A-14H | AFD-14H-M | 1400 | 130 | 19.7 | ||||||
| A-16H | AFD-16H-M | 1600 | 2400 | 45 | 160 | 24.6 | N-22B | |||
| A-22 | AFD-22-M | 2200 | 50 | 240 | 49.1 | |||||
| A-30 | AFD-30-M | 3000 | 2600 | 55 | 410 | 68.7 | N-23B | NKOS-M20 | ||
| A-35A | AFD-35A-M | 3500 | 3000 | 650 | 73.6 | |||||
| A-40A | - | 4000 | 65 | 1000 | 78.5 | N-25B | - | |||
Note:

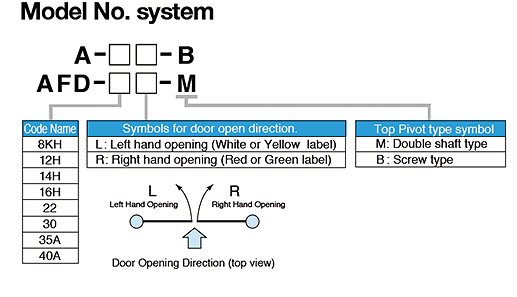

1. The opening directions are shown by the symbols suffixed at the end of model No. ; "R" for right-hand open and "L" for left-hand open.
2. Pre-set type can be used as roll-in system by unwinding the spring.
3. One(1) set consists of main hinge, receptive base, Top Pivot and Decorative Rubber Plates.
4. Stop mechanism is not applicable.
5. Select suitable model by referring to [Chart for Applicable Doors] shown below.
6. Fixed type (floor type) receptive base is available as option for a place to which the sliding receptive base is not applicable.
7. The models from A-8KH/AFD-8KH-M to A-16H/AFD-16H-M have a spring winding-window on both sides of hinge main body.
Select an appropriate model according to the dimensions (height x width) of the door used.
Make sure that the door weight is within the range of [Table of Applicable Door Weight] (below) and determine the model.
| Model | Weight/ 1 m2 | Type of doors | |
| A-8KH | AFD-8KH | 27 kg/m2 max. | Steel door (only for wicket door) |
| A-12H | AFD-12H | 39 kg/m2 max. | Steel door |
| A-14H | AFD-14H | 41 kg/m2 max. | |
| A-16H | AFD-16H | ||
| A-22 | AFD-22 | 45 kg/m2 max. | |
| A-30 | AFD-30 | 52 kg/m2 max. | |
| A-35A | AFD-35A | 61 kg/m2 max. | |
| A-40A | - | 83 kg/m2 max. | |
Note:
Based on the condition that wind velocity of 3 m/sec is applied.
Contact us when using on a forced smoke ventilation or at the place with strong wind.
| Model number | Type of door | Door size applicable (mm) | Door Weight (kg)(Max) | Closing force(N•m) | Stop mechanics | Stop angle | Max.Opening angle | Color | |||||
| Right hand opening | Left hand opening | W (Max) |
H (Max) |
D (Max) |
|||||||||
| 300 Series |
*Click on the series number for detail page. |
||||||||||||
| 311S (Available for both right and left) |
Wooden door Aluminum door |
800 | 2000 | 30 | 30 | 5.0 | o | 85 ̊ - 180 ̊ (Free stop) |
180 ̊ Left or right one side opening | Silver Bronze Ivory Gold |
|||
| Empty hinge | Empty hinge | ||||||||||||
| 310 (Available for both right and left) |
Wooden door Aluminum door |
- | - | - | |||||||||
| 1000 Series |
*Click on the series number for detail page. |
||||||||||||
| 1111R | 1111L | Wooden door Aluminum door Light steel door |
850 | 2000 | 30 | 35 | 7.9 | - | - | 180 ̊ Left or right one side opening | Silver | ||
| 1111SR | 1111SL | o | 85 ̊ | ||||||||||
| 1121R | 1121L | - | - | Bronze | |||||||||
| 1121SR | 1121SL | o | 85 ̊ | ||||||||||
| 1111FR | 1111FL | o | - | Silver | |||||||||
| 1121FR | 1121FL | o | 85 ̊ - 180 ̊ (Free stop) |
Bronze | |||||||||
| 1211R | 1211L | - | - | Silver | |||||||||
| 1211SR | 1211SL | o | 85 ̊ | ||||||||||
| 1221R | 1221L | - | - | Bronze | |||||||||
| 1221SR | 1221SL | o | 85 ̊ | ||||||||||
| 1211FR | 1211FL | o | 85 ̊ - 180 ̊ (Free stop) |
Silver | |||||||||
| 1221FR | 1221FL | o | Bronze | ||||||||||
| Empty hinge | Empty hinge | ||||||||||||
| 1110R | 1110L | Wooden door Aluminum door Light steel door |
- | - | - | 180 ̊ Left or right one side opening | Silver | ||||||
| 1120R | 1120L | ||||||||||||
| 1210R | 1210L | ||||||||||||
| 1220R | 1220L | ||||||||||||
| 2000 Series |
*Click on the series number for detail page. |
||||||||||||
| 2211R | 2211L | Wooden door Aluminum door Light steel door |
800 | 2000 | 30 | 30 | - | - | - | 180 ̊ Left or right one side opening | Silver | ||
| 2211WR | 2211WL | ||||||||||||
| Empty hinge | |||||||||||||
| 2210R | 2210L | Wooden door Aluminum door Light steel door |
|||||||||||
| 2210WR | 2210WL | ||||||||||||
| 100 Series |
*Click on the series number for detail page. |
||||||||||||
| 112R | 112L | Wooden door Light steel door (122T for steel frame) |
900 | 2100 | 30 | 40 | 10.0 |
- | - | 180 ̊ Left or right one side opening | Silver or Bronze | ||
| 112SR | 112SL | o | 85 ̊ and 150 ̊ | Silver | |||||||||
| 122R-T | 122L-T | - | - | ||||||||||
| 122SR-T | 122SL-T | o | 85 ̊ and 150 ̊ | ||||||||||
| 113R | 113L | Wooden door Aluminum door |
60 | 15.0 | - | ||||||||
| 113SR | 113SL | o | 85 ̊ and 150 ̊ | ||||||||||
| 113R TRISET | 113L TRISET | 1000 | 2200 | 80 | 20.0 | - | |||||||
| 113SR TRISET | 113SL TRISET | o | 85 ̊ and 150 ̊ | ||||||||||
| 122R-AT | 122L-AT | Wooden door Light steel door Steel frame |
900 | 2100 | 40 | 10.0 | - | ||||||
| 122SR-AT | 122SL-AT | o | 85 ̊ and 150 ̊ | ||||||||||
| 132R | 132L | Aluminum door Light steel door Partition door |
- | ||||||||||
| 132SR | 132SL | o | 85 ̊ and 150 ̊ | ||||||||||
| 143R-T | 143L-T | Steel door | 60 | 15.0 | - | ||||||||
| 143SR-T | 143SL-T | o | 85 ̊ and 150 ̊ | ||||||||||
| 143R-AT | 143L-AT | - | |||||||||||
| 143SR-AT | 143SL-AT | o | 85 ̊ and 150 ̊ | ||||||||||
| Empty hinge | Empty hinge | ||||||||||||
| 110R | 110L | Wooden door Light steel door (120T for steel frame) |
40 | - | - | - | 180 ̊ Left or right one side opening | Silver or Bronze | |||||
| 120R-T | 120L-T | Silver | |||||||||||
| 120R-AT | 120L-AT | ||||||||||||
| 130R | 130L | Aluminum door Light steel door Partition door |
|||||||||||
| 140R-T | 140L-T | Steel door | 60 | ||||||||||
| 140R-AT | 140L-AT | ||||||||||||
| 200 Series |
*Click on the series number for detail page. |
||||||||||||
| 234R | 234L | Heavy wooden door Aluminum door Steel door |
1200 | 2100 | 40 | 120 | 22.6 | - | - | 180 ̊ Left or right one side opening | Silver | ||
| 234SR | 234SL | o | 85 ̊ and 150 ̊ | ||||||||||
| 244R-T | 244L-T | Steel door | - | - | |||||||||
| 244SR-T | 244SL-T | o | 85 ̊ and 150 ̊ | ||||||||||
| Empty hinge | Empty hinge | ||||||||||||
| 230R | 230L | Heavy wooden door Aluminum door Steel door |
- | - | - | 180 ̊ Left or right one side opening | Silver | ||||||
| 240R-T | 240L-T | Steel door | |||||||||||
One set comes as a pair of hinges; a spring hinge and a damper hinge (except for empty hinges).

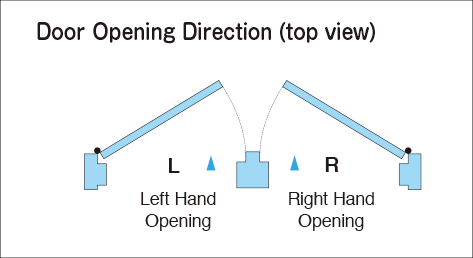

The models including "R" in the model number are for the right-hand opening doors, and "L" are for the left-hand opening doors. The 300 series is non handed, can be used for both right-hand and left-hand opening doors. Choose left-hand or right-hand opening type when ordering.
The models including "S" in the model number come with a hold stop function (with internal stop mechanism).
The models with "T" or "AT" at the end of the model number have tap holes (M6) on the hinge leaf. Same model without tap holes are also available. (Example: 143R-T with tap holes, 143R without tap holes)
The empty hinges come as a single set.

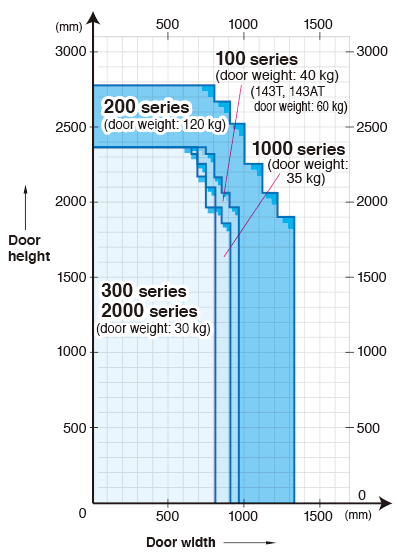

Select an appropriate model according to the dimensions (height x width) of the door used.
| Model number | Type of door | Door size applicable (mm) | Door Weight (kg)(Max) | Closing force(N•m) | Stop mechanics | Stop angle | Max.Opening angle | Color | |||
| Right hand opening | Left hand opening | W (Max) |
H (Max) |
D (Max) |
|||||||
| 700 Series |
*Click on the series number for detail page. |
||||||||||
| 733R | 733L | Aluminum door Stainless door Steel door |
900 | 2100 | 40 | 120 | 15.0 | - | - | 180 ̊ Left or right one side opening | Shine gray |
| 733SR | 733SL | o | 85 ̊ and 150 ̊ | ||||||||
| Empty hinge | Empty hinge | ||||||||||
| 730R | 730L | Aluminum door Stainless door Steel door |
- | - | - | ||||||
| 100PC Series |
*Click on the series number for detail page. |
||||||||||
| 113R-PC | 113L-PC | Wooden door Aluminum door Light steel door |
900 | 2100 | 30 | 40 | 15.0 | - | - | 180 ̊ Left or right one side opening | Silver |
| 113SR-PC | 113SL-PC | o | 85 ̊ and 150 ̊ | ||||||||
| 133R-PC | 133L-PC | Aluminum door Light steel door |
- | - | |||||||
| 133SR-PC | 133SL-PC | o | 85 ̊ and 150 ̊ | ||||||||
| 143R-T-PC | 143L-T-PC | Steel door | 60 | - | - | ||||||
| 143SR-T-PC | 143SL-T-PC | o | 85 ̊ and 150 ̊ | ||||||||
| Empty hinge | Empty hinge | ||||||||||
| 110R-PC | 110L-PC | Wooden door Light steel door |
40 | - | - | - | |||||
| 130R-PC | 130L-PC | Aluminum door Light steel door |
|||||||||
| 140R-T-PC | 140L-T-PC |
Steel door |
60 | ||||||||
| 200PC Series |
*Click on the series number for detail page. |
||||||||||
| 234R-PC | 234L-PC | Heavy wooden door Aluminum door Steel door |
1200 | 2100 | 40 | 120 | 22.6 | - | - | 180 ̊ Left or right one side opening | Silver |
| 234SR-PC | 234SL-PC | o | 85 ̊ and 150 ̊ | ||||||||
| 244R-T-PC | 244L-T-PC |
Steel door |
- | - | |||||||
| 244SR-T-PC | 244SL-T-PC | o | 85 ̊ and 150 ̊ | ||||||||
| Empty hinge | Empty hinge | ||||||||||
| 230R-PC | 230L-PC | Heavy wooden door Aluminum door Steel door |
- | - | - | ||||||
| 240R-T-PC | 240L-T-PC | Steel door | |||||||||
| NK Series | |||||||||||
| NK153R-SC | NK153L-SC | Glass door | 900 | 2100 | 8 10 12 |
60 | 15.0 | - | - | 180 ̊ Left or right one side opening | Shine gray |
| NK153SR-SC | NK153SL-SC | o | 85 ̊ and 150 ̊ | ||||||||
| NK153R TRISET-SC | NK153L TRISET-SC |
1000 | 2200 | 80 | 20.0 | - | - | ||||
| NK153SR TRISET-SC | NK153SL TRISET-SC | o | 85 ̊ and 150 ̊ | ||||||||
| Empty hinge | Empty hinge | ||||||||||
| NK150R-SC | NK150L-SC | Glass door | - | - | - | ||||||

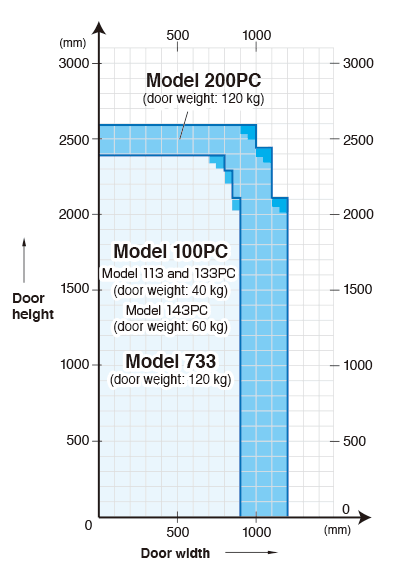

Select an appropriate model according to the dimensions (height x width) of the door used.
*Click on the model number for detail page.
| Applicable door |
Type | Series | Model | Door weight (kg) |
Applicable door width (mm) |
| Wooden doors |
Incline |
DSC-CW series |
DSC-CW30V | 10 - 30 | 600 - 1600 |
| DSC-CW60V | 30 - 60 | ||||
| DSC-CW03 | 10 - 30 | 700 - 1600 | |||
| DSC-CW08 | 30 - 60 | ||||
|
Horizontal |
NSC-CW series |
NSC-CW60V | 10 - 60 | 600 - 1600 | |
| NSC-CW23 | 10 - 30 | 700 - 1600 | |||
| NSC-CW48 | 30 - 80 |
*Click on the model number for detail page.
| Applicable door |
Type | Series | Model | Door weight (kg) |
Applicable door width (mm) |
| Steel doors |
Incline type |
DSC-C series |
DSC-C30V | 10 - 30 | 600 - 1600 |
| DSC-C60V | 30 - 60 | ||||
| DSC-C03 | 10 - 30 | 700 - 1600 | |||
| DSC-C08 | 30 - 60 | ||||
| DSC-C015 | 80 - 150 | ||||
| Horizontal type |
NSC-C series |
NSC-C60V | 10 - 60 | 600 - 1600 | |
| NSC-C48 | 10 - 80 | ||||
| NSC-CB48 (for bathrooms) | 10 - 80 | 700 - 1600 | |||
| NSC-C1215 | 80 - 150 | ||||
| NSC-C2525 | 150 - 250 | 900 - 2500 |
*Click on the model number for detail page.
| Applicable door |
Type | Series | Model | Door weight (kg) |
Applicable door width (mm) |
| Fire doors |
Incline type |
DSC-CF series |
DSC-C08F | 30 - 80 | Contact us for further information |
| DSC-C015F | 80 - 150 | ||||
| Horizontal type |
NSC-CF series |
NSC-C48F | 30 - 80 | ||
| NSC-C1215F | 80 - 150 | ||||
| NSC-C2525F | 150 - 250 |
*Click on the model number for detail page.
| Applicable door |
Type | Series | Model | Door weight (kg) |
Applicable door width (mm) |
| Pocket doors |
Incline type |
DSC-CKS series |
DSC-CKS serise | 10 - 80 | Contact us for further information |
| Horizontal type |
NSC-CKS series |
NSC-CKS serise |
