Product Info（NUT CUPLA 200 200-65SNG STEEL NBR）

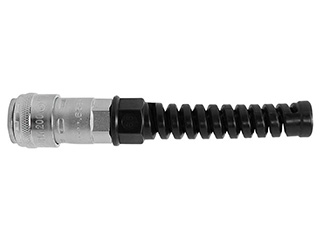

NUT CUPLA 200  200-65SNG STEEL NBR

No hose clamp required!
Simple and secure push-to-connect type!
Big flow rate!
End-face seal design.
Gives excellent handling touch.
Hose guard nut type available to prevent hose kinking.

-To mount on hose, simply slide it over the nipple and tighten the nut.
-The design to tighten outside of hose reduces hose slip away or fluid leaks.
-An excellent general purpose coupling for connecting factory air supply
to pneumatictools.
-Steel coupling is suitable for air.
-Steel models are heat-treated for increased strength
giving greater durability and resistance to wear.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
200-65SNG STEEL NBR	73140	CB07829	4992338731403	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	NUT CUPLA 200	Applicable Fluid	Air
Shape	Socket (Female)	Body Material	Steel
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Push-to-connect	Working Pressure	1.5 MPa
End Configuration	Nut for connection to urethane hose	Size of End Configuration	6.5 mm I.D. x 10 mm O.D.
Working Temperature	-20 ～ 60 ℃
