Product Info（JET CHISEL for robots JT-16-RBT）

New

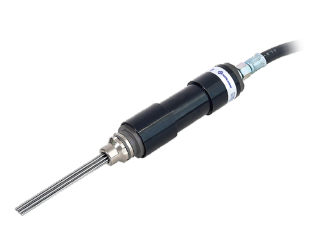

JET CHISEL for robots JT-16-RBT

[Made to order]
Pneumatic needle scaler for automatic machines.
Mount the product on machine tools or specialized equipment.
- Enables efficient chipping operations
- Floating mechanism reduces reaction force to the robot
- Two types of needles, 2 mm dia. and 3 mm dia. are available

Model                           : JT-16-RBT
Air Pressure        MPa(kgf/cm2): 0.6 (6)
Air Consumption(No-load) m3/min : 0.16
Strokes per Minute        min-1 : 5740
(when using dia. 2 mm needles)
Needle Diameter and Quantity
                 2 mm dia./pcs. : 15
                 3 mm dia./pcs. : 6
Needle Length                mm : 180
Mass (Weight)                kg : 1.8
Accessories Included    :
- 15 pieces of 2 mm x 180 mm Needles (Installed)
- 15 pieces of 2 mm x 180 mm Needles
- 6 pieces of 3 mm x 180 mm Needles
- Needle supporter 3 mm
- Bushing R 3/8 x NPT 3/8
- Hose Nipple R 3/8 x NPT 3/8

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
JT-16-RBT	83643	TB11885	4992338836436	Power & Machine Tools	Scaling

specification

Scaling	JET CHISEL (Pneumautic)	Number of Needles Required (Applicable Model)	2 mm dia. x 15 pcs. (JT-16-RBT) 3 mm dia. x 6 pcs. (JT-16-RBT)
Stroke per Minute / Stroke Speed	5740 min-1

Video

Frequently Asked Questions

Optional Accessories

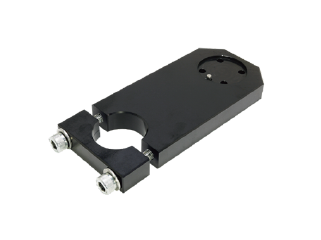

Mounting Plate JT-16 ISO3 Ass'y

Mounting Plate JT-16 ISO3 Ass'y

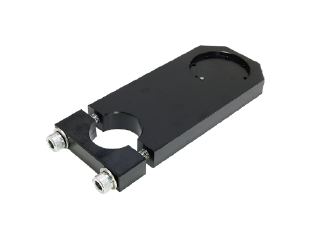

Mounting Plate JT-16 GP12 Ass'y

Mounting Plate JT-16 GP12 Ass'y

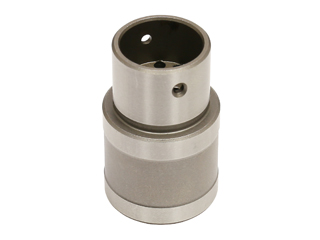

Needle Supporter 2 mm for JT-16

Needle Supporter 2 mm for JT-16

Needle Supporter 3 mm for JT-16

Needle Supporter 3 mm for JT-16

Needle 2 mm dia. X 180 mm

Needle 2 mm dia. X 180 mm

Needle 3 mm dia. X 180 mm

Needle 3 mm dia. X 180 mm

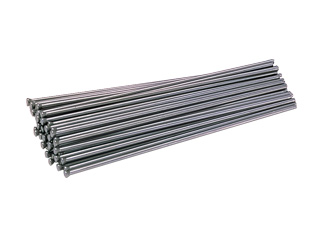

SUS Needle 3 mm dia X 180 mm

SUS Needle 3 mm dia X 180 mm

SUS Needle 2 mm dia X 180 mm

SUS Needle 2 mm dia X 180 mm
