Product Info（BELTON B-20CL-01 (Made to order)）

BELTON  B-20CL-01 (Made to order)

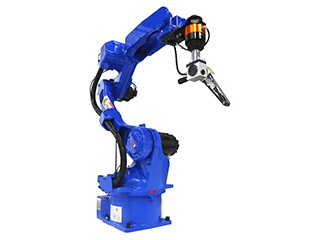

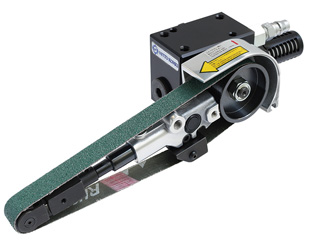

B-20CL-01 is a pneumatic belt sander for automatic machines (robots).
- Enjoy BELTON's deburring performance on robots
- The 20 mm wide belt enables smooth operation similar to manual operation
- Curved surface grinding is possible by using the Offset Bracket
- Securely fixed to the robot by using screw holes and positioning pins
- Compatible with air float attachments available on the market
(Mounting Jig is required)

Model                           : B-20CL-01
Air Pressure        MPa(kgf/cm2): 0.6 (6)
Air Consumption(No-load) m3/min : 0.52
Free Speed            min-1(rpm): 18000
Belt Speed                m/min : 2770
Belt Size                    mm : 20 X 520
Mass (Weight)                kg : 1.6
Accessories Included   :  - Abrasive Belt Z #60 x 20 mm
                          - Abrasive Belt Z #80 x 20 mm
                          - Abrasive Belt Z #100 x 20 mm
                          - Abrasive Belt Z #120 x 20 mm
                          - 2.5 mm Hex. Socket Screw key
                          - 4 mm Hex. Socket Screw Key
                          - Silencer
                          - Offset Bracket 20 Ass'y
                          - HI CUPLA 20PM Steel

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
B-20CL-01	78332	TB11362	4992338783327	Power & Machine Tools	Sanding

Model name	B-20CL-01
Product code	78332
Product No	TB11362
JAN code	4992338783327
Group name	Power & Machine Tools
Subgroup name	Sanding

specification

Sanding	BELTON (Lever)	for automatic machines	for automatic machines
Belt Size (W x L)	20 mm x 520 mm	Free Speed	18000 min-1(rpm)
Air Consumption (No-load)	0.52 m3/min

Sanding	BELTON (Lever)
for automatic machines	for automatic machines
Belt Size (W x L)	20 mm x 520 mm
Free Speed	18000 min-1(rpm)
Air Consumption (No-load)	0.52 m3/min

Video

Frequently Asked Questions

Optional Accessories

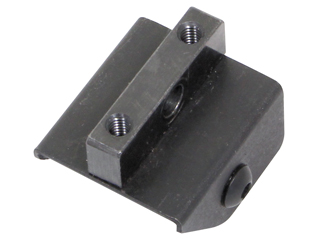

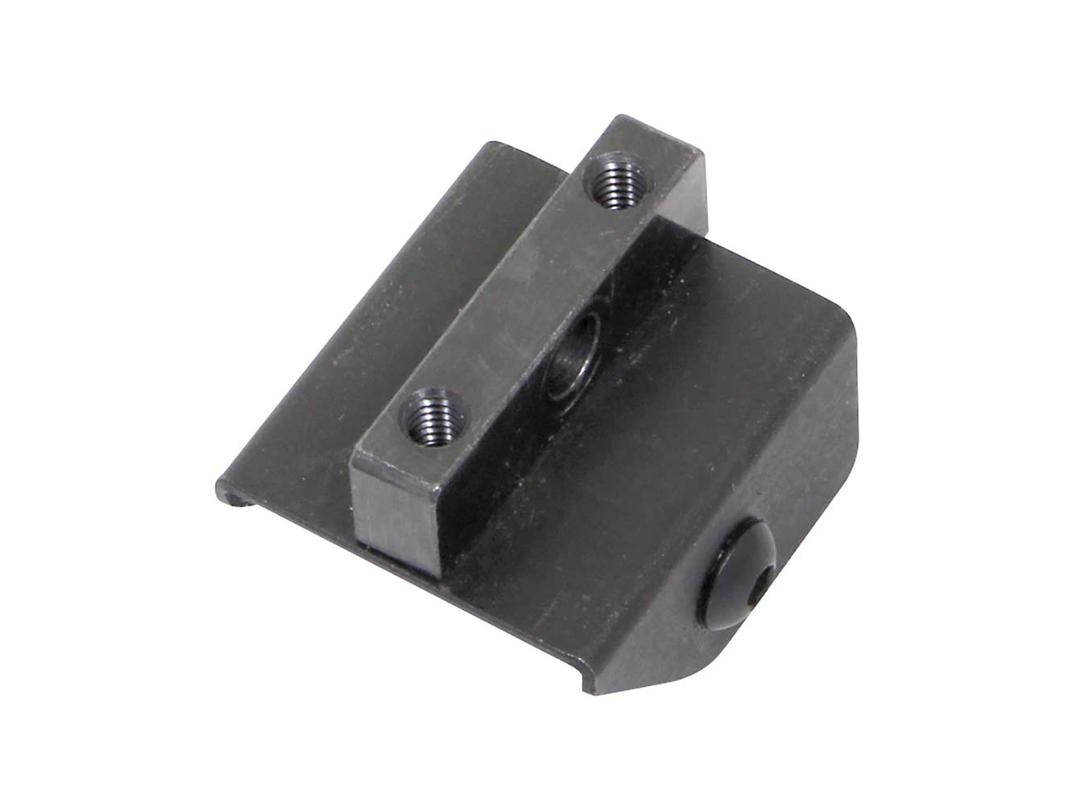

Offset Bracket 20 Ass'y for B-20CL

Offset Bracket 20 Ass'y for B-20CL

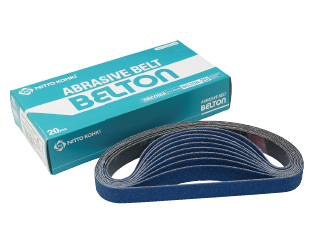

Abrasive Belt Zirconia #40 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #40 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #60 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #60 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #80 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #80 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #100 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #100 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #120 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #120 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #180 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #180 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #240 X 20 for B-20CL, B-20CL-A

Abrasive Belt Zirconia #240 X 20 for B-20CL, B-20CL-A

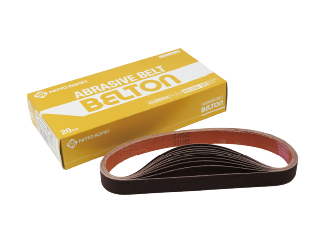

Abrasive Belt Alumina #320 X 20 for B-20CL, B-20CL-A

Abrasive Belt Alumina #320 X 20 for B-20CL, B-20CL-A

Abrasive Belt Alumina #400 X 20 for B-20CL, B-20CL-A

Abrasive Belt Alumina #400 X 20 for B-20CL, B-20CL-A

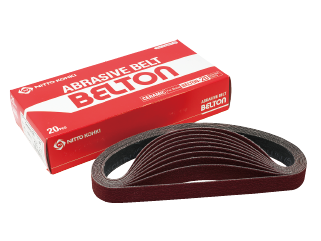

Abrasive Belt Ceramic #40 X 20 for B-20CL, B-20CL-A
