Product Info（AIR SONIC L-35C-02 (Made to order)）

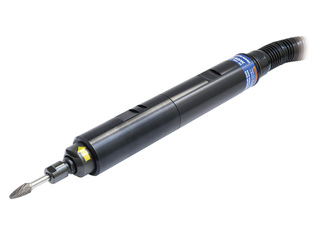

AIR SONIC  L-35C-02  (Made to order)

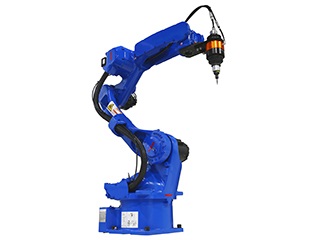

L-35C-02 is a pneumatic die grinder for automatic machines (robots).
- Suitable for deburring complex-shaped workpieces
- High speed rotation 37500 rpm enables precision grinding
- Accepts wide variety of tools with 6 mm shanks
- 40 mm body diameter makes it easy to mount on robots
- Compatible with air float attachments available on the market

Model                           : L-35C-02
Air Pressure        MPa(kgf/cm2): 0.6 (6)
Air Consumption(No-load) m3/min : 0.35
Free Speed            min-1(rpm): 37500
Chuck Size                   mm : 6
Mass (Weight)                kg : 1.1
Accessories Included    : - 2 pieces of 14 mm Single Ended Spanner

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
L-35C-02	78322	TB11358	4992338783228	Power & Machine Tools	Grinding

specification

Grinding	AIR SONIC	for automatic machines	for automatic machines
Chuck Size	6 mm dia.	Free Speed	37500 min-1(rpm)
Air Consumption (No-load)	0.35 m3/min

Video

Frequently Asked Questions

Optional Accessories

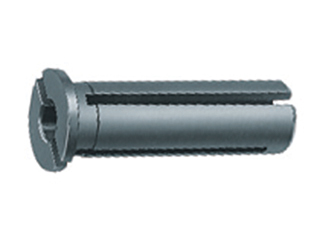

Chuck Sleeve 6 X 3 for L-25B, L35C

Chuck Sleeve 6 X 3 for L-25B, L35C

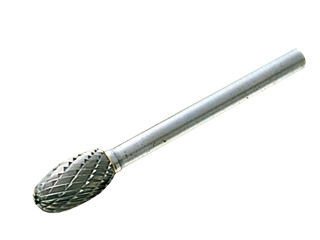

Rotary Burr No.1 CB1C-106 for L-35C

Rotary Burr No.1 CB1C-106 for L-35C

Rotary Burr No.2 CB2C-105 for L-35C

Rotary Burr No.2 CB2C-105 for L-35C

Rotary Burr No.3 CB3C-103 for L-35C

Rotary Burr No.3 CB3C-103 for L-35C

Rotary Burr No.4 CB4C-103 for L-35C

Rotary Burr No.4 CB4C-103 for L-35C

Rotary Burr No.5 CB5C-104 for L-35C

Rotary Burr No.5 CB5C-104 for L-35C

Rotary Burr No.6 CB6C-102 for L-35C

Rotary Burr No.6 CB6C-102 for L-35C

Rotary Burr No.7 CB7C-103 for L-35C

Rotary Burr No.7 CB7C-103 for L-35C

Rotary Burr No.8 CB8C-105 for L-35C

Rotary Burr No.8 CB8C-105 for L-35C
