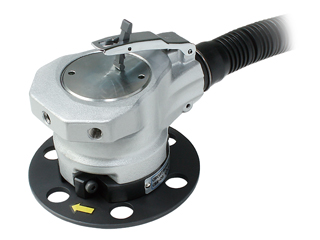

CIRCUIT BEVELER  CBR-03  CE

  • Pneumatic Radial Chamfering Tool
    For bridge applications
      - Radius chamfering on the scallop parts or holes of bridge members
    Shipbuilding
    For shipbuilding applications
      - Meets or exceeds PSPC* requirements on surface preparation of steel materials prior to coating
      - Radius chamfering on steel materials used in seawater ballast tanks and double-side skin bulk carrier production
      - Dual cutting head with 4 radius surfaces per tip and a quick-change base

    Model                           : CBR-03
    Air Pressure        MPa(kgf/cm2): 0.6 (6)
    Air Consumption(No-load) m3/min : 0.65
    Free Speed            min-1(rpm): 12000
    Chamfering Capacity  Mild Steel : 3 mm Radius
    Minimum Workpiece Thickness  mm : 6
    Inlet Size                      : Rc 1/4
    Mass (Weight)                kg : 3.9

    *PSPC stands for Performance Standard for Protective Coatings regulated by International Marine Organization.

Download

Download

Basic information

Model name Product code Product No JAN code Group name Subgroup name
CBR-03 CE TB08969 4992338446567 Power & Machine Tools Chamfering

specification

Chamfering Chamfer Edge
(Mild Steel) Max. Chamfering Capacity Air Consumption (No-load)
CE
