Product Info（ATRA ACE WA-3500 110-120V CE）

Discontinued

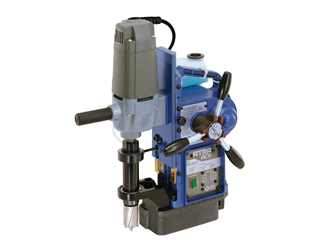

ATRA ACE  WA-3500 110-120V CE

Portable Magnetic Base Drilling Machine
-BreakerHigh-performance feed system & high-tech components
-Drilling time and cutting performance are enhanced by the automatic feed function.

Model                         : WA-3500
Power Source (Single Phase)   : 110 - 120 V AC, 50/60Hz
Electric Drill
   Rated Power Consumption    : 1100W
   Rated Current              : 10.2A
   No-load Speed              : 950 min-1(rpm)
Magnet Power Consumption      : 34W
Hole Capacity(mm)
  JETBROACH One-touch Type 35L: 17.5 to 35 (Plate thickness 9 to 35)
  JETBROACH One-touch Type 50L: 17.5 to 35 (Plate thickness 9 to 50)
  HI-BROACH One-touch Type 25L: 14   to 35 (Plate thickness 9 to 25)
Max. Stroke               (mm): 83
Magnet Holding Power          : 7056N (720kgf)
Magnet Dimensions         (mm): 92 X 213
Power Cord Length          (m): 3
Mass (Weight)             (kg): 20
Overall Dimensions        (mm): 409 X 237 X 530
(length)X(width)X(height)

Accessories Included
-Carry Case        -3 mm Hex. Socket Screw Key
-Cutting Oil 0.5L  -8 X 10 mm Spanner
-Pilot Pin 08035   -Guard
-Side Handle       -Chain

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
WA-3500 110-120V CE		TB08309	4992338644734	Power & Machine Tools	Boring

specification

Boring	ATRA ACE (Semi Auto)	Hole Diameter	14 ～ 35 mm
Plate Thickness	9 ～ 50 mm	Max. Stroke	83 mm
No Load Speed	950 min-1(rpm)	ATRA ACE Mass (Weight)	10 - 20 kg
CE	CE
