Product Info（MINI BEVELER MB-03A 230V Non-CE）

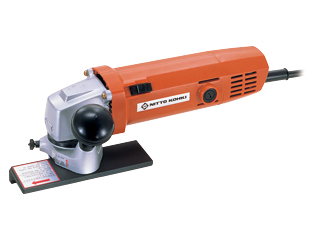

MINI BEVELER  MB-03A 230V  Non-CE

Handy Electric Chamfering Tool
- Compact and light for speed chamfering
- An outer R-part attachment allows chamfering of outer diameters with a radius greater than 170 mm
- An optional inner head ass'y allows chamfering a pipe of inner diameter larger than 100 mm (50R)

Model                      : MB-03A
Power Source (Single Phase): 230 V AC, 50/60 Hz
Rated Power Consumption  W : 430
Rated Current            A : 2
Duty Cycle             min : 30
No-load Speed    min-1(rpm): 11000
Chamfering Capacity
   Mild Steel              : Up to 3 mm Chamfer or 2 mm and 3 mm Radius
Chamfer Angle              : 45 degree
Power Cord Length        m : 2.5
Mass (Weight)           kg : 2.5

Inquiries about products

Download

Download

　　Electronic Catalog

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
MB-03A 230V Non-CE		TA9A588	4992338928476	Power & Machine Tools	Chamfering

specification

Chamfering	BEVELER (Electric)	Chamfer Edge	Straight
(Mild Steel) Max. Chamfering Capacity	3C 3R	Chamfer Angle	45 degree
CE	Non-CE
