For High-Temperature and High-Humidity Environments
Flag-Type HT700 Series

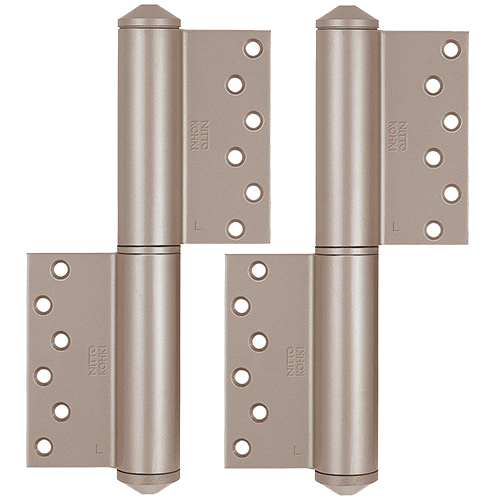

Model HT732L : for Steel doors(No hold open)
Provides smooth and safe door operation even in high-temperature and
high-humidity environments.
*Maximum operating temperature
Spring hinge: 80 degree Celsius
Damper hinge: 50 degree Celsius
(Do not install the hinge on the high-temper high-temperature side.)
*Made in highly endurable stainless steel with special sealing mechanism.
*Commercial grade, widely thick applicable for various locations
including bathrooms, seashores etc.
*Adopts an actuator with unique temperature sensor, ensuring consistent
closing speed all year round.
Applicable door size
Door width(W)[mm].....1000(max)
Door height(H)[mm]....2100(max)
Door thickness(D)[mm]...40(min)
Door weight[kg]........60(max)
Door opening direction....Left hand opening(DIN R)
Max. Opening Angle........180 degree One-side Opening
Surface color.............Shine gray
Place.....................for high-temperature and high-humidity use
Type of door..............Steel
Type of frame.............Steel
Screw hole................Countersinking diameter
Flag material.............Stainless steel
Closing torque[N･m].......10.0
Standard parts
Spring hinge..........................1pc
Damper hinge..........................1pc
Set pin...............................1pc
Countersunk head screw 5x16..........24pcs
