Flag type 100series

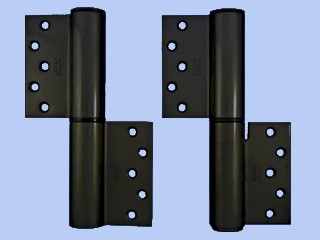

Model 112R-V : for wooden door(No hold open)
Door size applicable
Door width(W)[mm]......900(max)
Door height(H)[mm]....2100(max)
Door thickness(D)[mm]...30(min)
Door weight[kg].........40(max)
Door opening direction....Right hand opening
Max. Opening Angle........180 degree One-side Opening
Surface color.............Black
Place.....................for Indoor use only
Type of door..............Wooden / Aluminum / Light steel
Type of frame.............Wooden / Aluminum / Light steel
Screw hole................Countersinking diameter
Flag material.............Steel
Closing force[N･m]........10.0
Standard parts
Spring hinge..........................1pc
Damper hinge..........................1pc
Set pin...............................1pc
Countersunk head tapping screw 5x25..20pcs
