Long-life 40 V DC brushless motors are incorporated into electric screwdrivers.
- Incorporates long-life 40 V DC Brushless Motors.
- The dedicated controller or counter can be selected according to the application.
- Robust and high durability realized by new body design using high strength plastic.

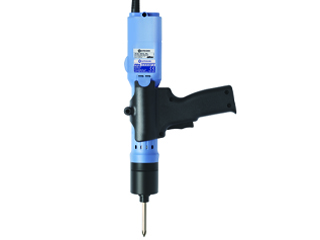

Model : DLV45A12P-ASK
Starting Method : Push to Start
Power Source : From dedicated Controller DLC70S-WGB

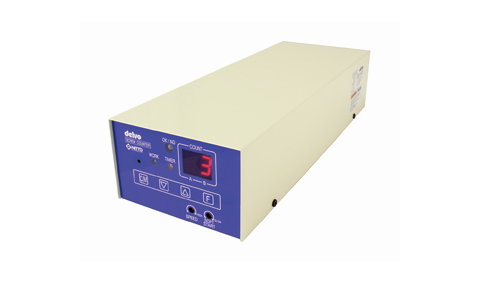

or Counter DLR70S-WGB
Torque Adjustment : Stepless
Torque (Nm [lbf.in]
Low Torque Spring (Standard Accessory) : 2.0 to 4.5 [17.7 to 39.8]
High Torque Spring (Built-in) : 2.0 to 4.5 [17.7 to 39.8]
Adjustable Speed Range (min-1) : 720 to 1200
Adjustable Soft Start (sec) : 0 to 2
Free Speed at Soft Start(min-1) : 480
Power Consumption(W) : 44
Screw Size (mm)
Machine screw : 4.5 - 6.0
Tapping screw : 4.0 - 5.0
Bit Type : NK35 (OD 6.35 mm Hex.Shank)
Mass : 870 g [1.92 lbs]
Cord Length(m) : 3 (with connector)
Rated Operation : ON: 0.5 seconds / OFF: 3.5 seconds
Bit Grounding : Equipped as standard
Standard Accessories : Bit No.2 x 7 x 75
Suspension Bail
Low Torque Spring
Torq.Adj.R.Cover DLW5202
