- "Soft Start" function: The slow startup prevents screw heads from possible damage caused by the disengaged bit.
- "Stepless Speed Adjustment" function widens the speed range from 390 to 2000 min-1 for various applications.
- The controller outputs: Start, torque-up and reverse signal via a dry contact method. These signals can be used for counting up fastened screws and preventing screw fastening errors.
- "Driver Lock" function: Applying 24 V DC to the designated terminals on the controller brings the screwdriver to an immediate stop in emergency cases.

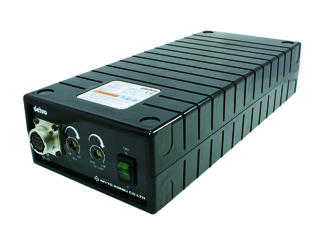

Model :DLC70S-WGB
Features :With speed control and soft start function
Power Source :100 - 240 V AC, 50/60 Hz
Output Voltage :40 V DC
Signal Output(contact point type):Start, Torque up, Reverse (Dry contact)
Signal Input :Drive Stop Function
( 24 V DC Power Source needed)
Mass (g [Ibs]):1800 [3.97]
Size W x L x H (mm):132 x 297 x 67
([inch]):[5.20" x 11.70" x 2.64"]
Bit Grounding :Ready (With a 1M ohm resistor)
Plug shape :Europe
Standard Accessories :Power cord (2 m): 1
Rubber feet: 4
Fuse (5 A): 1
