Product Info（COMPACT ZEROSPILL CUPLA CZL-2SM SUS EPDM）

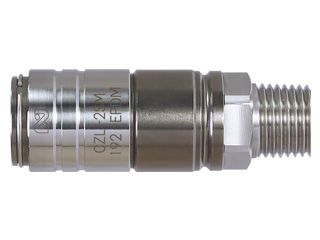

COMPACT ZEROSPILL CUPLA CZL-2SM SUS EPDM

Enables high flow rate and reduction of liquid spillage for small bore piping

This product is a Quick Connect Coupling which enables high flow rate for small bore piping. Valve structure reduces air inclusion on connection and liquid spillage when disconnecting.
Suitable for coolant piping of electronic equipment for supercomputers, data centers, other non-spill environments, and power electronics.

Main features
- Compact size saves space
- High flow
- Low spillage and low air inclusion
- Easy operation, push-to-connect function

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
CZL-2SM SUS304 EPDM	70614	CB65630	4992338706142	Quick Connect Couplings CUPLA	For Low Pressure (Two-way shut-off)

specification

Series Name	COMPACT ZEROSPILL CUPLA	Applicable Fluid	Air Water
Shape	Socket (Female)	Body Material	Stainless steel
Valve Structure	with valve	Characteristic	Reducing liquid spillage Small and lightweight High flow rate Bidirectional flow Corrosion resistant type
Working Pressure	1 MPa	End Configuration	Male thread
Size of End Configuration	1/4	Working Temperature	-10 ～ 100 ℃

Video

COMPACT ZEROSPILL CUPLA Special Page: Show Details
