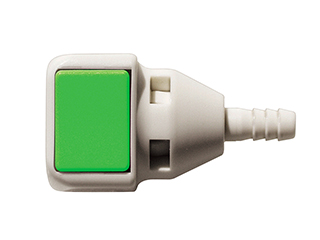

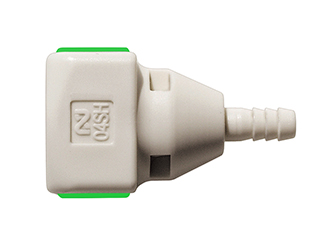

CUBE CUPLA SPC-04SH-GRN

  • - Ultra-lightweight, made of polyacetal resin and compact design for space saving.
    - Just push plug into socket for connection.
      Simply press the button on the socket for disconnection.
    - L type plug is suitable for piping in narrow space
    - Material that conforms to the Food sanitation Act of Japan is adopted.

    *Do not use in the combination of valved sockets and valveless plugs.
     The valve in the socket will not open and the fluid will not flow.

Download

Download

Basic information

Model name Product code Product No JAN code Group name Subgroup name
SPC-04SH-GRN POM NBR 65147 CB64607 4992338651473 Quick Connect Couplings CUPLA For Low Pressure (Valve combination possible type)
Model nameSPC-04SH-GRN POM NBR
Product code 65147
Product No CB64607
JAN code4992338651473
Group nameQuick Connect Couplings CUPLA
Subgroup nameFor Low Pressure (Valve combination possible type)

specification

Series Name Applicable Fluid
Shape Body Material
Seal Material Valve Structure
Characteristic
Working Pressure
End Configuration Size of End Configuration
Working Temperature Suitability for Vacuum
Series Name CUBE CUPLA
Applicable Fluid Air Water
Shape Socket (Female)
Body Material Polyacetal resin (POM)
Seal Material Nitrile rubber
Valve Structure with valve
Characteristic Small and lightweight Push-to-connect
Working Pressure 1 MPa
End Configuration Hose nipple
Size of End Configuration For 4 mm I.D. tube
Working Temperature -20 ~ 60 ℃
Suitability for Vacuum When connected
