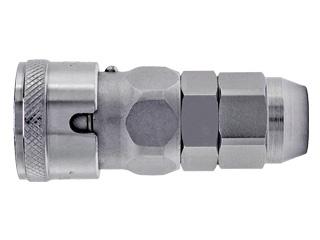

HI CUPLA BL 80SN-BL STEEL NBR
| Model name | Product code | Product No | JAN code | Group name | Subgroup name |
|---|---|---|---|---|---|
| 80SN-BL STEEL NBR | 40500 | CB28023 | 4992338405007 | Quick Connect Couplings CUPLA | For Low Pressure Air (One-way shut-off) |
| Model name | 80SN-BL STEEL NBR |
|---|---|
| Product code | 40500 |
| Product No | CB28023 |
| JAN code | 4992338405007 |
| Group name | Quick Connect Couplings CUPLA |
| Subgroup name | For Low Pressure Air (One-way shut-off) |
| Series Name | Applicable Fluid | ||
|---|---|---|---|
| Shape | Body Material | ||
| Seal Material | Valve Structure | ||
| Characteristic |
|
Working Pressure | |
| End Configuration | Size of End Configuration | ||
| Working Temperature |
| Series Name | HI CUPLA BL |
|---|---|
| Applicable Fluid | Air |
| Shape | Socket (Female) |
| Body Material | Steel |
| Seal Material | Nitrile rubber |
| Valve Structure | with valve |
| Characteristic | Standard type Lock |
| Working Pressure | 1.5 MPa |
| End Configuration | Nut for connection to urethane hose |
| Size of End Configuration | 8 mm I.D. x 12 mm O.D. |
| Working Temperature | -20 ～ 80 ℃ |
