Product Info（HI CUPLA BL 40SM-BL STEEL NBR）

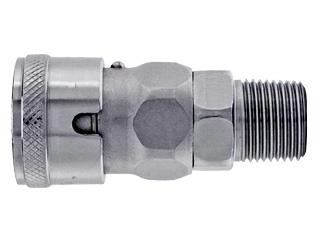

HI CUPLA BL  40SM-BL STEEL NBR

Sleeve-lock mechanism is engaged by rotating the sleeve after connection.

-Sleeve-lock mechanism prevents accidental disconnection.
-An excellent general purpose coupling for connecting factory air supply
to pneumatic tools.
-Steel coupling is suitable for air. Stainless steel is suitable for water.
-Note that fluid will come out from the plug when disconnected.
-Critical structural parts made of steel are heat-treated for increased strength
giving greater durability and resistance to wear.
-Various body materials, sizes, and end configurations are available.
-SN-BL type for connection to urethane hose requires no hose clamp.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
40SM-BL STEEL NBR	40487	CB28011	4992338404871	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	HI CUPLA BL	Applicable Fluid	Air
Shape	Socket (Female)	Body Material	Steel
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Standard type Lock	Working Pressure	1.5 MPa
End Configuration	Male thread	Size of End Configuration	1/2
Working Temperature	-20 ～ 80 ℃
