Product Details

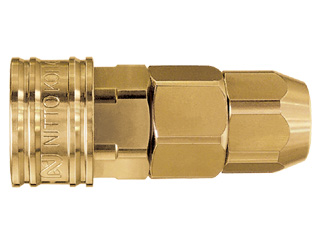

COMPACT CUPLA  CO-60SN BRASS EPDM

Compact 17.5 mm outer diameter, yet socket
and plug have built-in automatic shut-off valves.

Model name	Product code	Product No	JAN code	Group name	Subgroup name
CO-60SN BRASS EPDM	20409	CB26835	4992338204099	Quick Connect Couplings CUPLA	For Low Pressure (Two-way shut-off)

Series Name	COMPACT CUPLA	Applicable Fluid	Air Water
Shape	Socket (Female)	Body Material	Brass
Seal Material	Ethylene-propylene rubber	Valve Structure	with valve
Characteristic	Small and lightweight Standard type Bidirectional flow Corrosion resistant type	Working Pressure	1 MPa
End Configuration	Nut for the tube	Size of End Configuration	6 mm I.D. x 8 mm O.D.
Working Temperature	-40 ～ 150 ℃	Suitability for Vacuum	When connected
