Product Details

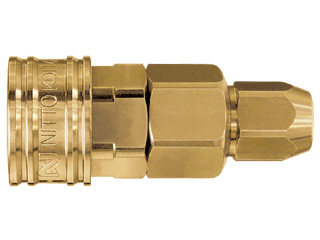

COMPACT CUPLA  CO-40SN BRASS FKM

Compact 17.5 mm outer diameter, yet socket
and plug have built-in automatic shut-off valves.

Model name	Product code	Product No	JAN code	Group name	Subgroup name
CO-40SN BRASS FKM	20389	CB26795	4992338203894	Quick Connect Couplings CUPLA	For Low Pressure (Two-way shut-off)

Series Name	COMPACT CUPLA	Applicable Fluid	Air Water
Shape	Socket (Female)	Body Material	Brass
Seal Material	Fluoro rubber	Valve Structure	with valve
Characteristic	Small and lightweight Standard type For bidirectional compressed Corrosion resistant type	Working Pressure	1 MPa
End Configuration	Nut for the tube	Size of End Configuration	4 mm I.D. x 6 mm O.D.
Working Temperature	-20 ～ 180 ℃	Suitability for Vacuum	When connected
