Product Info（PURGE HI CUPLA PVR PVR-600SM BRASS NBR）

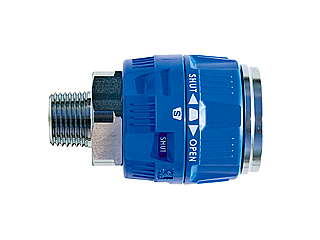

PURGE HI CUPLA PVR  PVR-600SM BRASS NBR

Connection can be made smoothly regardless of the existing pressure
inside the socket.

-Push-to-connect operation. Easy one-hand operation.
-Built-in separation prevention mechanism prevents accidental disconnection of CUPLA,
ensuring safe operation.
-Upon completion of sleeve locking the valve will open to supply air.
-When the sleeve is turned back to its original position, the valve is closed
and purges residual air pressure in the plug without unpleasant popping
noise and hose whip motion on disconnection.
-Even after connection, valve opening/closing control is possible.
-Flow rate increases by approximately 20% over that of Hi Cupla Model 400SM.
-Can be connected with plugs for Hi Cupla Models 400, 600 and 800.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
PVR-600SM BRASS NBR	36131	CB22634	4992338361310	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	PURGE HI CUPLA PVR Type	Applicable Fluid	Air
Shape	Socket (Female)	Body Material	Zinc alloy
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Residual pressure measures High flow rate Lock Push-to-connect	Working Pressure	1.5 MPa
End Configuration	Male thread	Size of End Configuration	3/4
Working Temperature	-20 ～ 60 ℃
