Product Info（FLOW METER FM-03-B BRASS NBR）

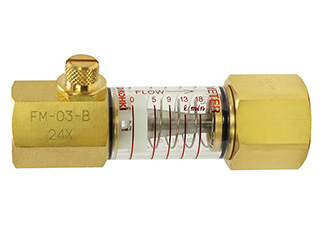

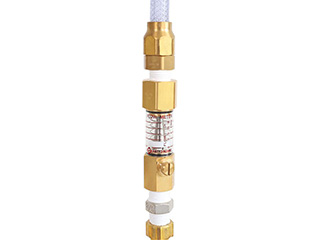

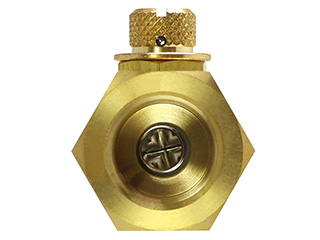

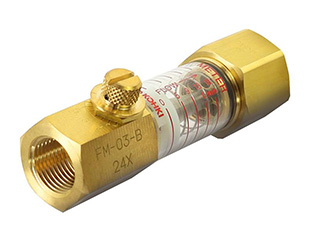

FLOW METER  FM-03-B BRASS NBR

For stable and accurate coolant flow rate.

-Graduated scale enables easy visual check of
coolant flow rate regardless of operator.
-Built-in flow rate adjustment valve enables desired setting of
mold conditions for each machine.
-Easy resumption of previously set molding conditions to cut lead times.
-T2 side is equipped with rotary function. Even after fixing the body on
T1 side to the piping, additional screw tightening on T2 side is possible.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
FM-03-B BRASS NBR	35545	CB22371	4992338355456	Quick Connect Couplings CUPLA	Accessories, Option, Repair

specification

Series Name	FLOW METER	Applicable Fluid	Water
Body Material	Brass	Seal Material	Nitrile rubber
Working Pressure	0.5 MPa	End Configuration	Female thread
Size of End Configuration	3/8	Working Temperature	10 ～ 60 ℃
Working frow	0 ～ 0 L/min
