Product Info（NK CUPLA HOSE COIL HOSE NKC-605B）

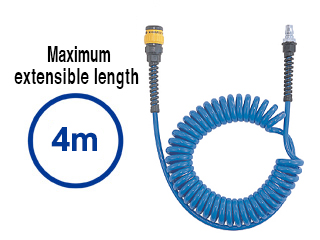

NK CUPLA HOSE COIL HOSE  NKC-605B

Hi Cupla Ace sockets with polyurethane hoses are now standard stock items.
Push-to-connect design for quick piping.

-The Hi Cupla Ace socket is mounted on pliable polyurethane hose featuring
excellent durability and wear resistant with hose guard nut to prevent possible kinking.
-Plastic socket will cause minimum risk of damage even in contact
with tools or equipment.
-Air flows in either direction from plug or from socket side when coupled.
-Spiral polyurethane coil hoses processed from straight tube
have self-recoiling feature.

Inquiries about products

Download

Download

　　Electronic Catalog

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
NKC-605B	52496	CB14901	4992338524968	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	NK CUPLA HOSE / NK CUPLA COIL HOSE	Applicable Fluid	Air
Shape	Socket (Female)	Body Material	Engineering plastics (PBT, POM)
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Bidirectional flow Push-to-connect	Working Pressure	1 MPa
Working Temperature	-5 ～ 60 ℃
