Product Info（LEVER LOCK CUPLA LF-8TPM AL）

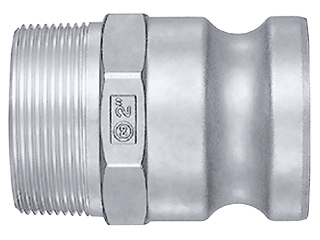

LEVER LOCK CUPLA  LF-8TPM AL

Light lever pull-down will connect the plug and socket without fail ready to
flow liquid or gases.

-This Cupla complies with diversified applications in liquid or gas transportation.
-End-face seal structure enables no bumps or hollows on the internal fluid
passage, and ensures smooth fluid transportation.
-A special lip packing (except sizes 3/4 and 1inch, silicone rubber, and FEP-covered rubber) employed reduces the load to the lever for easy operation.
-Connection part dimensions comply with US military specifications
MIL-A-A-59326(MIL-C-27487).
-The variety of body materials, sizes and end configurations has been
standardized to comply with wide range of applications.
-Additional stopper function design will enhance safety (only for made-to-order
metal body product).

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
LEVER LOCK CUPLA LF-8TPM AL	79777	CB12921	4992338797775	Quick Connect Couplings CUPLA	For Low Pressure (Straight through)

specification

Series Name	LEVER LOCK CUPLA Aluminum Alloy	Applicable Fluid	Air Hydraulic oil Water Powder
Shape	Plug (Male)	Body Material	Aluminum alloy
Valve Structure	without valve	Characteristic	Standard type
Working Pressure	1.8 MPa	End Configuration	Male thread
Size of End Configuration	1	Working Temperature	-40 ～ 180 ℃
Suitability for Vacuum	When connected
