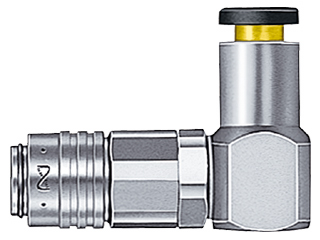

MICRO CUPLA WITH TUBE FITTING MC-04SCL BRASS NBR
| Model name | Product code | Product No | JAN code | Group name | Subgroup name |
|---|---|---|---|---|---|
| MC-04SCL BRASS NBR | 78256 | CB11156 | 4992338782566 | Quick Connect Couplings CUPLA | For Low Pressure Air (One-way shut-off) |
| Model name | MC-04SCL BRASS NBR |
|---|---|
| Product code | 78256 |
| Product No | CB11156 |
| JAN code | 4992338782566 |
| Group name | Quick Connect Couplings CUPLA |
| Subgroup name | For Low Pressure Air (One-way shut-off) |
| Series Name | Applicable Fluid | ||
|---|---|---|---|
| Shape | Body Material | ||
| Seal Material | Valve Structure | ||
| Characteristic |
|
Working Pressure | |
| End Configuration | Size of End Configuration | ||
| Working Temperature | Suitability for Vacuum |
| Series Name | MICRO CUPLA Brass |
|---|---|
| Applicable Fluid | Air |
| Shape | Socket (Female) |
| Body Material | Brass |
| Seal Material | Nitrile rubber |
| Valve Structure | with valve |
| Characteristic | Small and lightweight For bidirectional compressed Push-to-connect Tube fitter |
| Working Pressure | 1 MPa |
| End Configuration | Tube fitting |
| Size of End Configuration | For 4 mm O.D. tube |
| Working Temperature | -20 ～ 80 ℃ |
| Suitability for Vacuum | When connected |
