Product Info（DUSTER CUPLA DCS-20PH STEEL NBR）

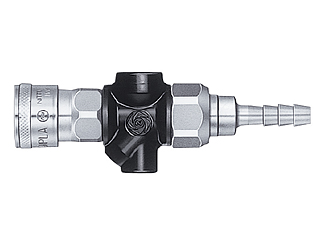

DUSTER CUPLA  DCS-20PH STEEL NBR

Three functions in one: connection, air blow, hose twist release !
Dust blow without detaching the tool !

-Hi Cupla comes with compact air blow function.
-Improves job efficiency by air blow with tool still connected to hose.
-Ball bearing swivel mechanism prevents hose twist and relieves tension
on operator's hand.
-Special design of air blow button switch is free from in line air pressure
no hard press down required.
-Also simple is routine water drain from air line before starting daily work.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
DCS-20PH STEEL NBR	74156	CB08667	4992338741563	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	DUSTER CUPLA	Applicable Fluid	Air
Shape	Socket (Female)	Body Material	Steel
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Rotary-swing Blower function	Working Pressure	1 MPa
End Configuration	Hose nipple	Size of End Configuration	1/4
Working Temperature	-20 ～ 60 ℃
