Product Info（HI CUPLA 200 200-20SM STEEL NBR）

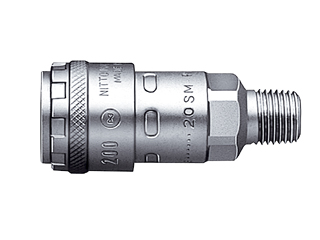

HI CUPLA 200  200-20SM STEEL NBR

Simple and secure push-to-connect type!
Big flow rate!
End-face seal design.
Gives excellent handling touch.

-Just push the plug into the socket for simple and secure connection.
  This reduces connection time and improves efficiency.
-New valve design for low pressure loss to achieve flow rate increase
  (15% up over the conventional model).
-End-face seal is achieved when connected.
-Enhanced operability with low connection resistance.
-End-face seal design is superior to external seal with an O-ring
  due to no seal damage caused by exhausted lubrication.
-Available only with steel body. Not suitable for water or oil.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
200-20SM STEEL NBR	71208	CB07818	4992338712082	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	HI CUPLA 200	Applicable Fluid	Air
Shape	Socket (Female)	Body Material	Steel
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Push-to-connect	Working Pressure	1.5 MPa
End Configuration	Male thread	Size of End Configuration	1/4
Working Temperature	-20 ～ 60 ℃
