Product Info（TWIST PLUG TS-30PM STEEL NBR）

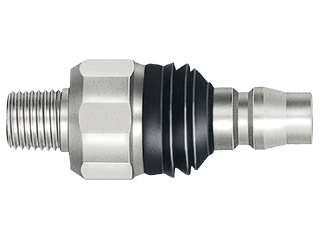

TWIST PLUG  TS-30PM STEEL NBR

Eliminates hose twisting, kinking, or bending! Greatly improves working efficiency!

-A plug with a free twisting neck for hose connections to pneumatic tools and devices.
-Free angle control (max.70 degree flexible) provides comfortable job positions,
even in narrow spaces or with overhead works.
-The flexible part is reinforced with self-lubricating plastics to give smooth
bending action and excellent durability.
-Dust protector over the flexible part prevents dirt and swarf from entering.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
TS-30PM STEEL NBR	71714	CB07407	4992338717148	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	TWIST PLUG	Applicable Fluid	Air
Shape	Plug (Male)	Body Material	Steel
Seal Material	Nitrile rubber	Valve Structure	without valve
Characteristic	Rotary-swing	Working Pressure	1 MPa
End Configuration	Male thread	Size of End Configuration	3/8
Working Temperature	-20 ～ 60 ℃
