Product Info（PURGE PLUG PV-30PH STEEL NBR）

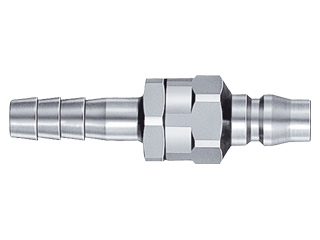

PURGE PLUG  PV-30PH STEEL NBR

Eliminates unpleasant popping noise and hose whip motion when Cupla is disconnected.

-When Cupla is disconnected, the pressure left in the plug side hose is
released gradually without unpleasant popping noise and hose whip motion.
-Unique design of air purge system enables the residual pressure
releasequickly and quietly.
-A unique but simple purge valve design is good for long and repeated use.
-The function is assured even under a high supply pressure or with a long hose.
Note: This product is not a check valve to totally stop the air flow.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
PV-30PH STEEL NBR	71708	CB07385	4992338717087	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	PURGE PLUG	Applicable Fluid	Air
Shape	Plug (Male)	Body Material	Steel
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Residual pressure measures	Working Pressure	1 MPa
End Configuration	Hose nipple	Size of End Configuration	3/8
Working Temperature	-20 ～ 60 ℃
