Product Info（MULTI CUPLA MAM TYPE MAM-1TP-8 BRASS）

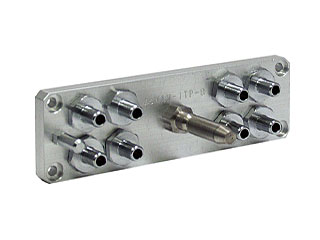

MULTI CUPLA MAM TYPE  MAM-1TP-8 BRASS

Simultaneously connects several ports securely in one operation!
Greatly cuts cycle time in multiple ports replacement.

-Handles several ports at once.
-Simple action with lever enables easy connection / disconnection manually.
-Comes with lock mechanism to prevent accidental disconnection.
-Valve on socket side only.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
MAM-1TP-8 BRASS	71305	CB07149	4992338713058	Quick Connect Couplings CUPLA	For Multi-Port Connection(Two-way shut-off, One-way shut-off

specification

Series Name	MULTI CUPLA MAM Type	Applicable Fluid	Air
Shape	Plug (Male)	Body Material	Aluminum alloy Brass
Valve Structure	without valve	Characteristic	Standard type Lock
Working Pressure	0.7 MPa	End Configuration	Female thread
Size of End Configuration	1/8	Working Temperature	-20 ～ 60 ℃
