Product Info（MOLD CUPLA K-02SF BRASS NBR）

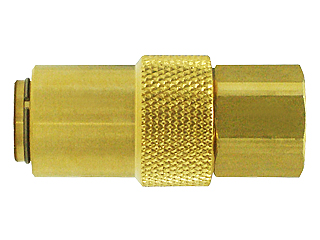

MOLD CUPLA  K-02SF BRASS NBR

Designed for quick replacement for die and mold !
Rust resistant models having many variations.

- Space saving design for molds with closely spaced coolant ports.
-Long sleeve socket facilitates connection/disconnection with
plug embedded in mold.
-Enables quick mold cooling water line connection/disconnection.
-Various sizes and end configurations to suit a wide variety of
mold applications.
-Can be connected with Super Cuplas.
-Push-to-connect design.
(Built-in automatic shut-off valve in the socket)
Also available is Cupla without valve (Please specify in ordering).

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
K-02SF BRASS NBR	80274	CB00017	4992338802745	Quick Connect Couplings CUPLA	For Low Pressure ( One-way shut-off / Straight through )

specification

Series Name	MOLD CUPLA	Applicable Fluid	Water
Shape	Socket (Female)	Body Material	Brass
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	For mold	Working Pressure	1 MPa
End Configuration	Female thread	Size of End Configuration	1/4
Working Temperature	-20 ～ 80 ℃
