Product Info（SUPER CUPLA 02SF STEEL NBR）

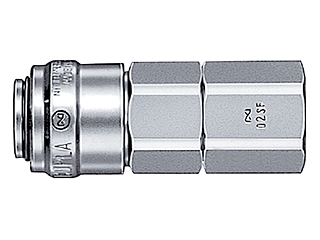

SUPER CUPLA  02SF STEEL NBR

The lightweight design is suitable for power tools!
Push-to-connect for easy operation.

-Lightweight socket design suits direct connection to power tools.
Aluminum body is adopted for some models to reduce the weight.
-Just push the plug into socket for easy one hand connection.
-Available in various end configurations for a wide range of pneumatic applications.
-Model 02S20P can be connected with sockets for Hi Cupla Models 10, 17, 20, 30 , 40 and 60.
-Also available with quick connect / disconnect Tube Fitter type.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
02SF STEEL NBR	04414	CA96883	4992338044145	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	SUPER CUPLA	Applicable Fluid	Air
Shape	Socket (Female)	Body Material	Aluminum alloy Steel
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Small and lightweight Push-to-connect	Working Pressure	1 MPa
End Configuration	Female thread	Size of End Configuration	1/4
Working Temperature	-20 ～ 80 ℃
