Product Info（HI CUPLA TWO WAY TYPE TW-20SH STEEL NBR）

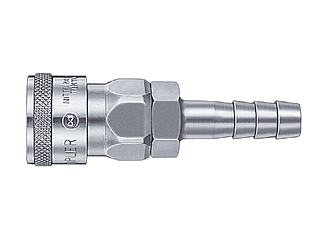

HI CUPLA TWO WAY TYPE  TW-20SH STEEL NBR

Air flows in either direction from plug or from socket side when coupled.
Ideal for connection of factory air supply lines to pneumatic devices.

-Can be connected with plugs for Hi Cupla Models 10, 17, 20, 30 and 40
and allows fluid to flow from either plug or socket side when coupled.
-Wide range of connections such as from ports on air pipes in factory to
individual pneumatic devices.
-Critical structural parts are heat-treated for increased strength giving greater
durability and resistance to wear.
-Available in various sizes and end configurations to suit a wide range of
applications.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
TW-20SH STEEL NBR	01351	CA83944	4992338013516	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	HI CUPLA Two Way Type	Applicable Fluid	Air
Shape	Socket (Female)	Body Material	Steel
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	For bidirectional compressed	Working Pressure	1.5 MPa
End Configuration	Hose nipple	Size of End Configuration	1/4
Working Temperature	-20 ～ 80 ℃
