Product Info（MINI CUPLA 22SH BRASS NBR）

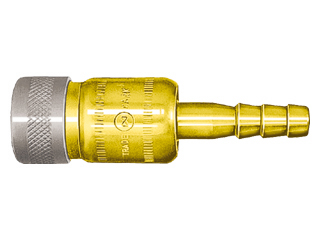

MINI CUPLA  22SH BRASS NBR

Exclusively for oxyacetylene equipment.
Many variations with higher flow rates!

-From cylinders to torches, all piping connections associated with
welding and cutting equipment are push-to-connect operations.
-Double-lip seal prevents minor leak during connection.
Oxygen and fuel gas Cuplas have different sizes to prevent
accidental interconnection.
-Pressure loss is minimized to achieve higher flow rate.
-Various types of end configurations have been standardized
to comply with a wide range of welding and cutting equipment
applications. Sockets themselves or plugs themselves are
interchangeable with Mini Cupla Super's counterparts.
-Line Cupla Mini is also available for multiple piping.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
22SH BRASS NBR	01170	CA80424	4992338011703	Quick Connect Couplings CUPLA	For Welding Lines (One-way shut-off)

specification

Series Name	MINI CUPLA	Applicable Fluid	Oxygen
Shape	Socket (Female)	Body Material	Brass
Seal Material	Nitrile rubber	Valve Structure	with valve
Characteristic	Standard type Push-to-connect	Working Pressure	0.7 MPa
Size of End Configuration	1/4	Working Temperature	-20 ～ 80 ℃
