Wooden fittings, inclined DSC-CW series
|
|||
| Applicable door |
Model | Door weight (kg) |
Applicable door width (mm) |
| Wooden doors | DSC-CW03 | 10-30 | 700-1600 |
| DSC-CW08 | 30-80 | ||
| DSC-CW30V | 10-30 | 600-1600 | |
| DSC-CW60V | 30-60 | ||
|
Wooden fittings, horizontal NSC-CW series |
|||
| Applicable door |
Model | Door weight (kg) |
Applicable door width (mm) |
| Wooden doors | NSC-CW23 | 10-30 | 700-1600 |
| NSC-CW48 | 10-80 | ||
|

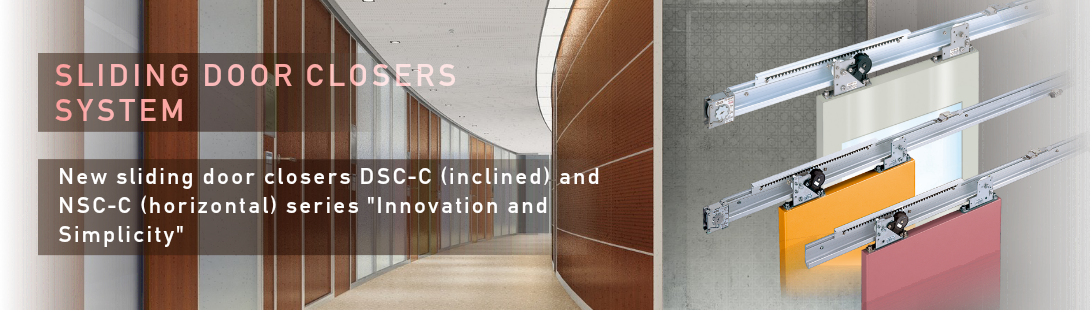

Steel lightweight fittings, inclined DSC-C series |
|||
| Applicable door |
Model | Door weight (kg) |
Applicable door width (mm) |
| Steel doors Aluminum doors |
DSC-C03 | 10-30 | 700-1600 |
| DSC-C08 | 30-80 | ||
| DSC-C30V | 10-30 | ||
| DSC-C60V | 30-60 | ||
| DSC-C015 | 80-150 | ||
| Steel lightweight fittings, horizontal NSC-C series | |||
| Applicable door |
Model | Door weight (kg) |
Applicable door width (mm) |
| Wooden doors | NSC-CW60V |
10-60 |
600-1600
|
| Steel doors Aluminum doors |
NSC-C60V |
10-60 | |
| NSC-C48 |
10-80 |
700-1600
|
|
| NSC-C1215 | 80-150 | ||
| NSC-C2525 |
150-250 | 900-2500 | |
| Lightweight steel fittings , bathrooms, horizontal type for bathroomsNSC-CB series | |||
| Applicable door |
Model | Door weight (kg) |
Applicable door width (mm) |
| Steel doors Aluminum doors |
NSC-CB48 | 10-80 | 700-1600 |
*Available for pocket door type and fire rated type.
