| Model No. | Door size applicable (mm) |
Door weight (kg) |
Standard closing force (N•m) | Spring set system | Top pivot | Max, opening angle | ||
| W | H | D | ||||||
| A-8KH | 800 (max.) | 2,000 (max.) | 36 (min) | 50 (max.) | 6.9 | Roll-in system | N-21B | 180 ̊right or left one-side opening |
| A-12H | 1,200 | 2,100 | 40 | 100 | 15.7 | |||
| A-14H | 1,400 | 130 | 19.7 | |||||
| A-16H | 1,600 | 2,400 | 45 | 160 | 24.6 | |||
| A-22 | 2,200 | 50 | 240 | 49.1 | N-22B | |||
| A-30 | 3,000 | 55 | 410 | 68.7 | N-23B | |||
| A-35A | 3,500 | 3,000 | 650 | 73.6 | ||||
| A-40A | 4,000 | 60 | 1,000 | 78.5 | N-25B | |||
Note:
1.Difference in opening directions are shown by the symbols, "R" for right-hand door and "L" for left-hand door,
suffixed at the end of model No.
2. Pre-set type can be used as roll-in system by unwinding the spring.

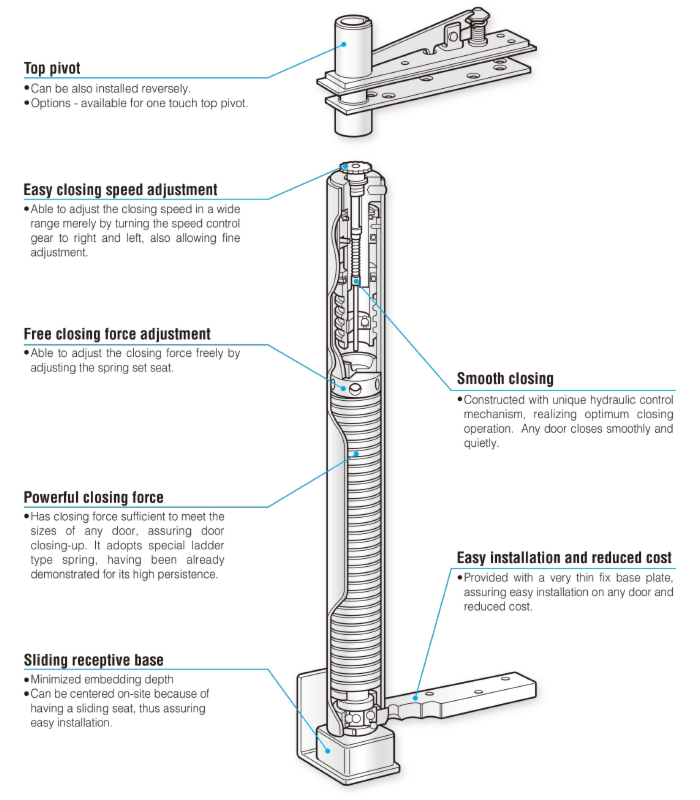

3. Each AUTO HINGE (center hang type) consists of a main body, a receptive base, a top pivot,
and a decorated rubber plate.4. Stop mechanism is not built in.5. For selection of a model refer to

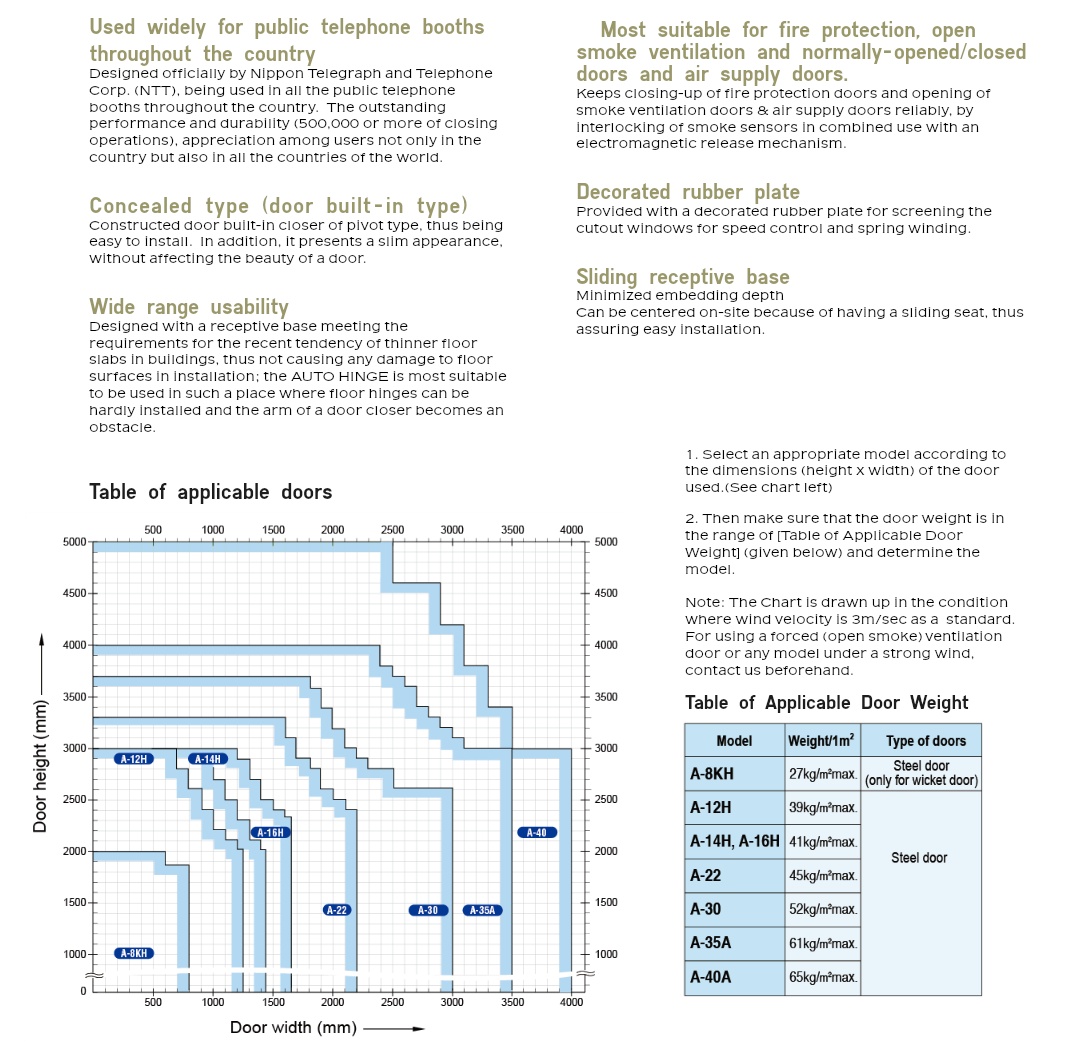

the [Chart for Applicable Doors] shown below.
6. Handling of the fixed type (floor type) receptive base
The fixed type (floor type) receptive base is prepared for a place to which the sliding receptive base is not applicable.
7. There is a spring winding-window on both sides from A-8KH to A-16H.
