Product Info（SMALL CUPLA WITH TUBE FITTER MS-20PC-6 BRASS NBR）

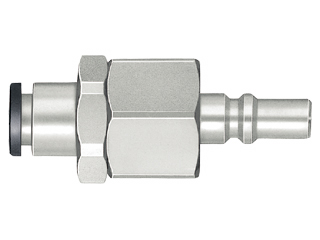

SMALL CUPLA WITH TUBE FITTER  MS-20PC-6 BRASS NBR

Lightweight and compact push-toconnect operation.
Responding to requirements of modular combinations.
Compact socket with built-in valve and 14 mm OD sleeve.
Suits applications calling for compact and modular components.

-Just push in the plug to the socket for connection by easy one hand operation.
-Plated brass for corrosion resistance adopted for the body.
-Stable performance for long life.
-A wide line-up of end configurations (female and male threads, hose barbs, manifolds)
enables suitability with a wide range of piping applications such as pneumatic,
scientific and medical equipment.
-Also available with quick connect/disconnect Tube Fitter type.

Inquiries about products

Download

Download

Basic information

Model name	Product code	Product No	JAN code	Group name	Subgroup name
MS-20PC-6 BRASS NBR	51361	CB13358	4992338513610	Quick Connect Couplings CUPLA	For Low Pressure Air (One-way shut-off)

specification

Series Name	SMALL CUPLA	Applicable Fluid	Air
Shape	Plug (Male)	Body Material	Brass
Seal Material	Nitrile rubber	Valve Structure	without valve
Characteristic	Small and lightweight For bidirectional compressed Push-to-connect Tube fitter	Working Pressure	0.7 MPa
End Configuration	Tube fitting	Size of End Configuration	6 mm O.D.
Working Temperature	-20 ～ 80 ℃	Suitability for Vacuum	When connected
