AUTO HINGE

AUTO HINGE OFFSET TYPE
TM3000 Series

STEEL FIRE DOOR MAXIMUM WEIGHT 300 kg
NO DIGGING REQUIRED!
Designed for office fire doors and suitable in constructions,
where cement boxes can not be used.

Specification

 Model
 Left hand open  TM3001- L = DIN R
 Right hand open  TM3001- R = DIN L

 Applicable Door
 Size [mm]               DW : 1500 max. DH : 2800 max. DT : 45 min.
 Weight [kg]  300 max.

 Performance
 Closing torque [Nm]  20
 Temperature  -10℃ to 40℃
 Setting closing time Closing time under 3 sec. / over 25 sec.
(measured door opening at 70 degree
to 180 degree)
 Closing time Adjustable
 Max.opening angle door  180 degree, left or right according to handing
 Stop angle none

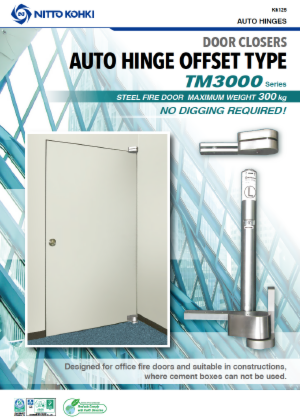

※ For more information, please click on the catalog image.
