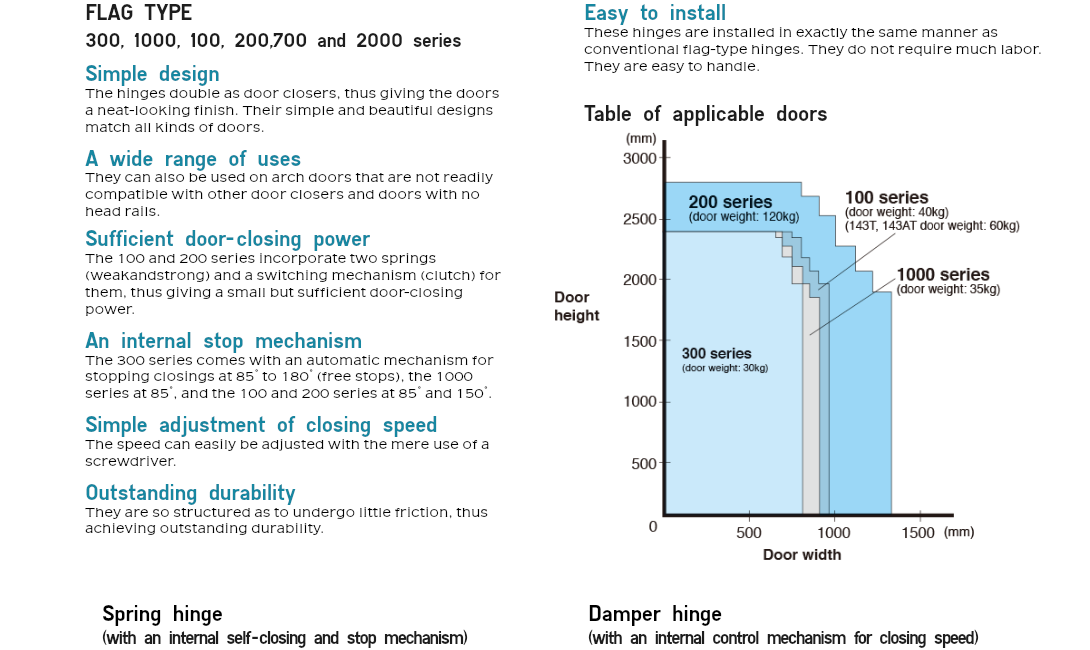

    ・Each model consists of a spring hinge and a damper hinge.

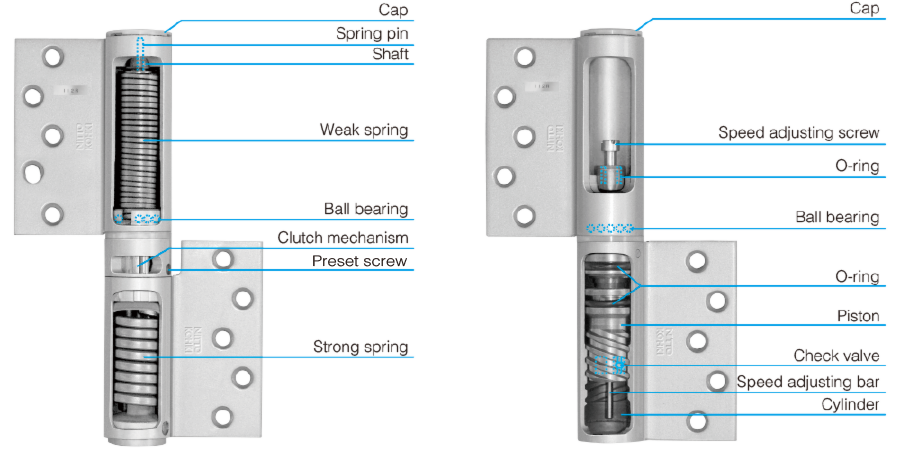

    ・This diagram represents the structure of the 100 series.

Model number Type of door Door size (mm)  Door weight
(kg)(Max)
Closing force
(Nm)
Stop angle Max.Opening angle Color
Right hand opening Left hand opening W(Max) H(Max) D(Min)
 300 Series
311S
(Available for both right and left)
Wood, aluminum
(Indoor use)
800 2000 30 30 5.0 85˚~180˚ 180˚Left or right one side opening Silver
Bronze
Ivory
Gold
Empty
hinge
310
(Available for both right and left)


 1000 Series
1111R 1111L Wooden door
Aluminum door
Light steel door
850 2000  30 35 7.9   180˚Left or right on eside opening Silver
1111SR 1111SL 85˚
1121R 1121L   Bronze
1121SR 1121SL 85˚
1211R 1211L   Silver
1211SR 1211SL 85˚
1221R 1221L   Bronze
1221SR 1221SL 85˚
Empty
hinge
1110R 1110L
  Silver
1120R 1120L Bronze
1210R 1210L Silver
1220R 1220L Bronze
 100 Series
 112R 112L  Wooden doorLight steel door(122T for steel frame)     900 2100 30 40 10.0      180˚
Left or right one side opening
Silver or Bronze
112SR  112SL 85˚ and 150˚
122R-T  122L-T    Silver
122SR-T   122SL-T 85˚ and 150˚
 113R 113L  Wooden doorAluminum door     60 15.0
 113SR 113SL  85˚ and 150˚
113R TRISET   113L TRISET 1000  2200 80 20.0
113SR TRISET   113SL TRISET 85˚ and 150˚
122R-AT
122L-AT
Wooden doorLight steel door(122T for steel frame)
900

2100

40 10.0
122SR-AT  122SL-AT  85˚ and 150˚
132R   132L Aluminum doorLight steel doorPartition door
132SR   132SL  85˚ and 150˚
143R-T 143L-T Steel door 60  15.0
143SR-T 143SL-T  85˚ and 150˚
143R-AT 143L-AT
143SR-AT  143SL-AT  85˚ and 150˚
Empty
hinge
110R 110L  Wooden doorLight steel door(120T for steel frame)  40                       Silver or Bronze
120R-T 120L-T Silver
120R-AT 120L-AT
130R 130L Aluminum doorLight steel doorPartition door
140R-T 140L-T Steel door 60
140R-AT 140L-AT
 200 Series
244R-T 244L-T Steel door     1200   2100    40 120    22.6     180˚Left or right oneside opening    Silver
244SR-T 244SL-T  85˚ and 150˚
Empty
hinge
  240L-T


 700 Series
733R 733L Aluminum doorStainless doorSteel door 900 2100 40 120 15.0   180˚Left or right oneside opening Silver
733SR 733SL 85˚ and 150˚
Empty
hinge
730R 730L
 PC Series
113R-PC 113L-PC Wooden doorAluminum doorLight steel door 900 2100  30 40 15.0   180˚Left or right oneside opening Silver
113SR-PC 113SL-PC 85˚ and 150˚
133R-PC 133L-PC Aluminum doorLight steel door
133SR-PC 133SL-PC 85˚ and 150˚
143R-T-PC 143L-T-PC Steel door 60
143SR-T-PC 143SL-T-PC 85˚ and 150˚
244R-T-PC 244L-T-PC 1200  40  120  22.6
244SR-T-PC 244SL-T-PC 85˚ and 150˚
Empty
hinge
110R-PC 110L-PC Wooden door
Light steel door
900 30 40
130R-PC 130L-PC Aluminum door
Light steel door
140R-T-PC 140L-T-PC Steel door  60
240R-T-PC 240L-T-PC 40 120
 153 Series
NK153R NK153L Glass door 900 2100  8

10

12
60 15.0     180˚Left or right oneside opening Silver
NK153SR NK153SL 85˚ and 150˚
NK153R TRISET NK153L TRISET 1000 2200  80
NK153SR TRISET NK153SL TRISET 85˚ and 150˚
Empty
hinge
NK150R NK150L
